Production Capacities
Forming
we are ready for large pieces
10 m
Gate width
12m
Gate height
70t
Crane capacity
Folding press CTO 250A
Sheet length
4000 mm
Table length
4000 mm
.jpg)
| Max. sheet length | 4000 mm |
| Max. sheet thickness | 20 mm |
| Nominal pressing force | 2500 kN |
| Table length | 4000 mm |
| Clearence between columns | 3420 mm |
| Bending HARDOX 400, 500 material | thmax = 8 mm, Lmax = 2000 mm |
| Radius tools | R5 / R12 / R20 / R25 |
Parameter
Value
Sheet metal roller XE 2000/6
Max. sheet width
2000 mm
.jpg)
| Max. sheet width | 2000 mm |
| Max. sheet thickness | 6 mm |
| Min. inner diameter | 195 mm |
| Max. outer diameter | unlimited |
| Diameter of the top roller | 150 mm |
| diameter of the side roller | 170 mm |
Parameter
Value
Sheet Metal Bending Machine XZMP 2000/8C
Max. sheet width
2000 mm
| Max. sheet width | 2000 mm |
| Max. sheet thickness | 12 mm |
| Min. inner diameter | 360 mm |
| Max. inner diameter | unlimited |
| Diameter of rollers | 300 mm |
Parameter
Value
Hydraulic sheet metal bending machine 4-roll AHS30/25
Max. sheet width
3100 mm
| Max. sheet width | 3100 mm |
| Max. sheet pre-bending thickness | 40 mm / at 620 mm width / at 1290 mm diameter |
| Max. sheet bending thickness | 48 mm / at 620 mm width / at 1290 mm diameter |
| Min. inner diameter | 510 mm / depending on material thickness |
| Max. inner diameter | unlimited |
| Roller diameter | top 430 mm / bottom 390 mm / side 330 mm |
Parameter
Value

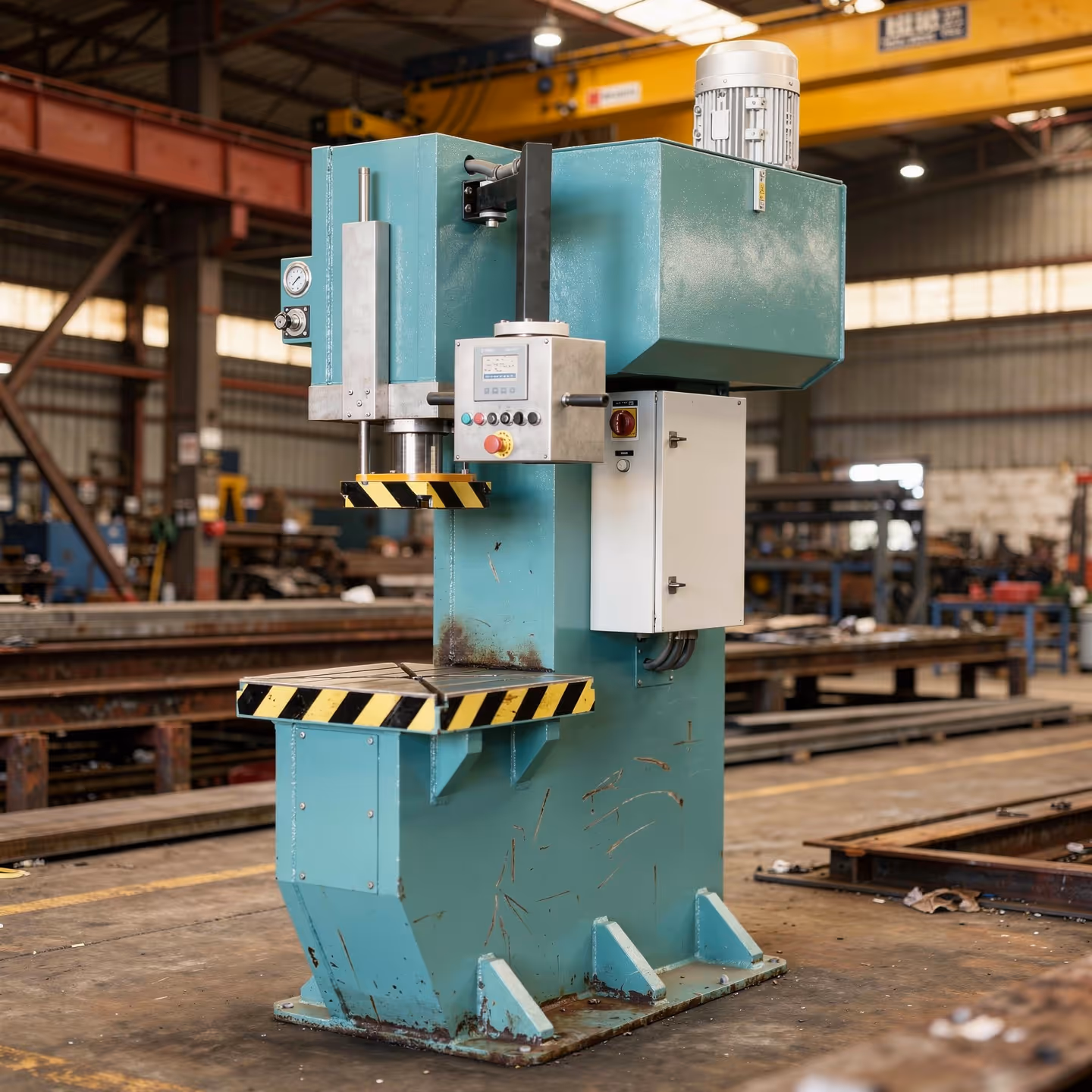

80t straightening press
Straightening table
360 x 1 600 mm
| Max. thickness of material to be straightened | 50 mm |
| Straightening table | 360 x 1600 mm |
Parameter
Value
Our Production Capabilities
We manufacture, refurbish and invent steel structures, welds and large machine units weighing up to several tens of tons. Rotary drums, furnace parts, conveyors, pressure vessels and atypical machine units for demanding conditions are created in our halls. We treat each order as a combination of modern technology and honest craftsmanship — quality machines, thoughtful procedures and people who understand their work. As a result, we deliver robust solutions that work long term and reliably.
